Cube Molds for Cement, Mortar and Grout

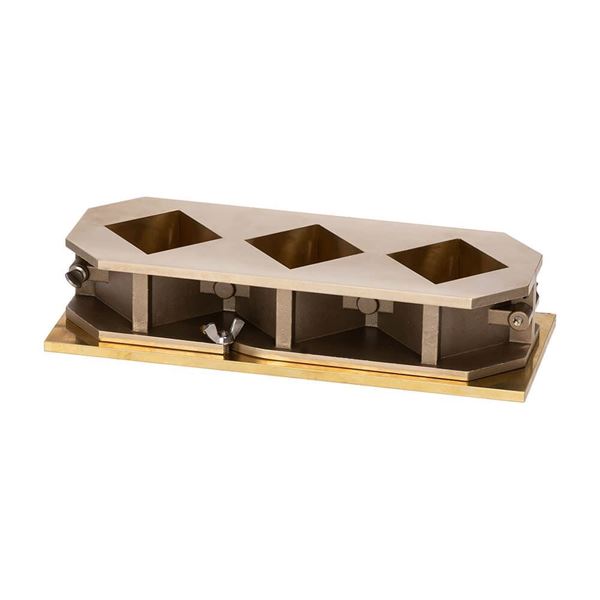

Bronze Cube Molds feature rugged quality construction and are available in 2in (51mm) or 50mm sizes. The forged bronze casting is precision machined to produce three cubes diagonally.

2x2in (51x51mm) samples.

50x50mm samples.

2x2in (51x51mm) samples. It has machined alignment guides for accurate positioning of the included 0.25in (96.4mm) thick brass base and cover plates. Wing nuts and studs secure the mold halves together and clamp the base and cover to the mold body. This mold is ideal for casting expansive grout samples, conventional grouts, and mortars, and is easily flipped over to compensate for worn top surfaces. A 6x1x0.5in white high-density polyethylene (HDPE) tamper is also included.

Several cover plates are available for purchased separately. Options include a standard brass cover plate with clamps, a 0.5in thick plastic cover plate, and a brass cover plate with holes for sulfur used when casting sulfur mortar capping compound cubes. Specially machined extra cover plates for the model are available.

View our full line of Cube Molds.

Features

• Accurately machined for casting three cubes in a diagonal arrangement
• Forged bronze construction
• Capable of casting expansive grout cubes
• Wing nut assembly secures mold halves together

Accessories

• Trowels with a flat or curved edge design is used to strike off, mix, or handle the specimen.
• Rubber Tamper is used for consolidating specimens.
• Brass Cover Plate fits and is used for sulfur testing.
• Plastic Cover Plate fits molds.
• Brass Cover Plate attaches to the top of  molds with included clamps.
• Brass Cover Plate for replacement cover for the Mold.
