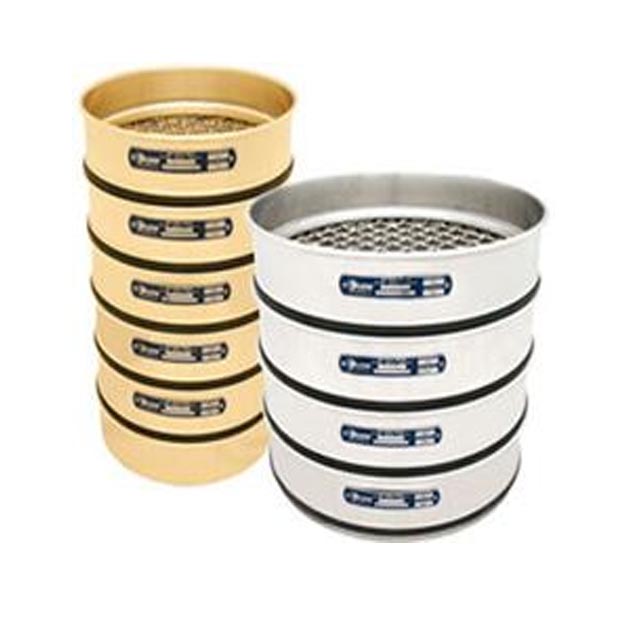

ISO Test Sieves

Sample volume and particle size determine proper frame diameter and height. Material is processed more efficiently and accurately on a sieve with more surface area, and blinding is reduced. The thickness of a specimen fraction on the mesh of a sieve should be no more than a couple of particles or layers deep. Frame height must permit proper agitation of the specimen, allowing larger particles enough room to reorient to the mesh surface. Explore the ISO Test Sieves price in Bangladesh at QCLab.

• Backing Cloth is an add-on purchase option to prevent sagging or tearing and improves service life for finer mesh sieves. A 500µm stainless steel mesh reinforcement is added to the test sieve below the primary sieve cloth, increasing the strength of the primary sieve cloth and reducing distortion of the openings during use. Backing Cloth is available at an extra cost for sieves with stainless steel mesh finer than 212µm on 200mm or 300mm diameter framed sieves. When ordering, these specially made sieves can be found with a “BU” suffix in the model number. These sieves are made-to-order and are non-returnable. To specify with other diameters, please contact Customer Service.
• Gilson ISO Compliance sieves are supplied with a serial number and Compliance certificate. The certificates do not verify measurements of an individual sieve, but that the wire cloth and manufacturing methods comply with ISO requirements. Inspection (99.0% confidence) or Calibration (99.73% confidence) Services individually measure sieves, and these services can be added to increase confidence that the sieve meets ISO standards.To upgrade from Compliance to Inspection or Calibration Verification Services, please select from the Sieve Verification & Services drop-down menu.
